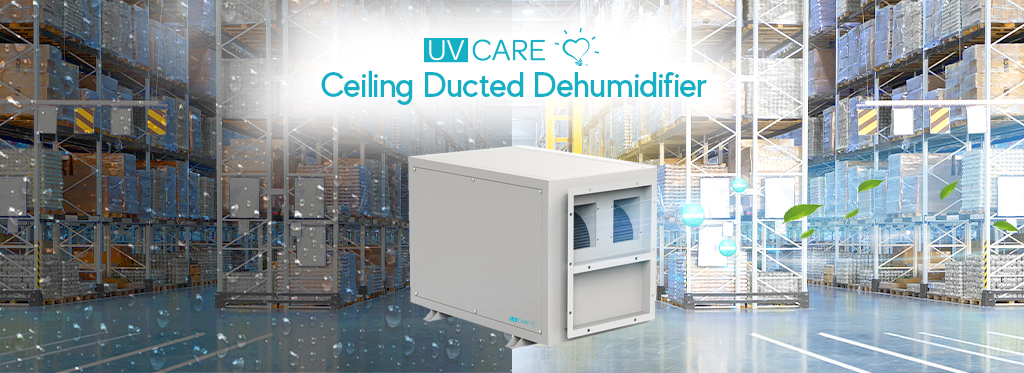

UV Care Ceiling Ducted Dehumidifiers

Inquire now!

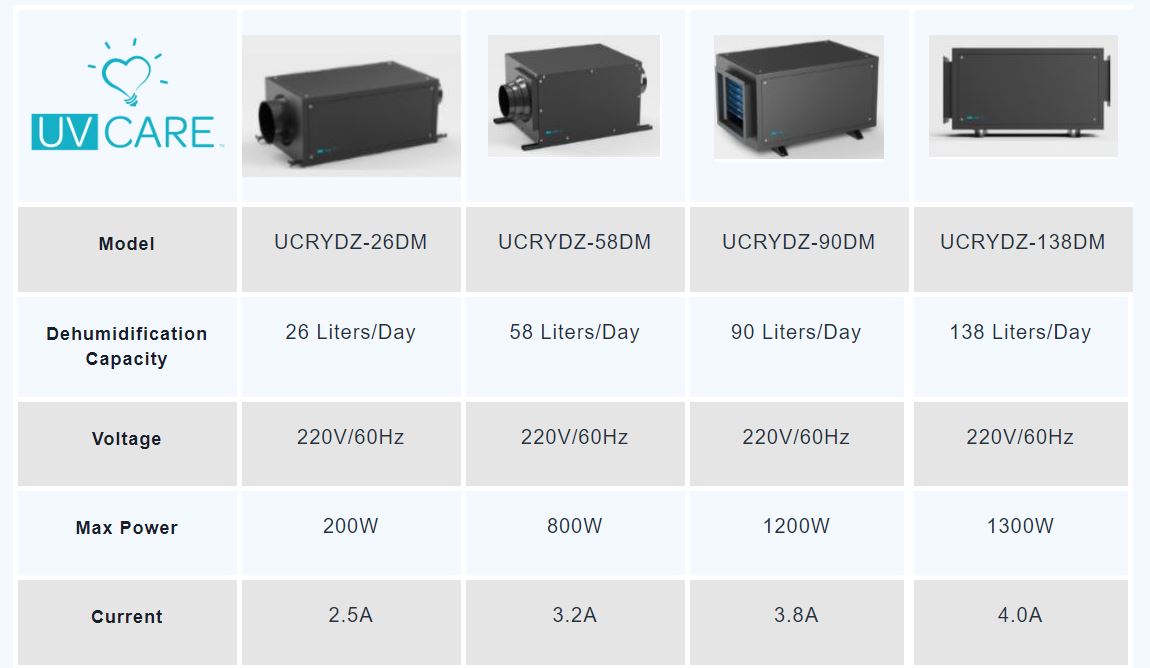

Model

UCRYDZ-26DM

UCRYDZ-58DM

UCRYDZ-90DM

UCRYDZ-138DM

Dehumidification Capacity

26 Liters/Day

58 Liters/Day

90 Liters/Day

138 Liters/Day

Voltage

220V/60Hz

220V/60Hz

220V/60Hz

220V/60Hz

Max Power

200W

800W

1200W

1300W

Current

2.5A

3.2A

3.8A

4.0A

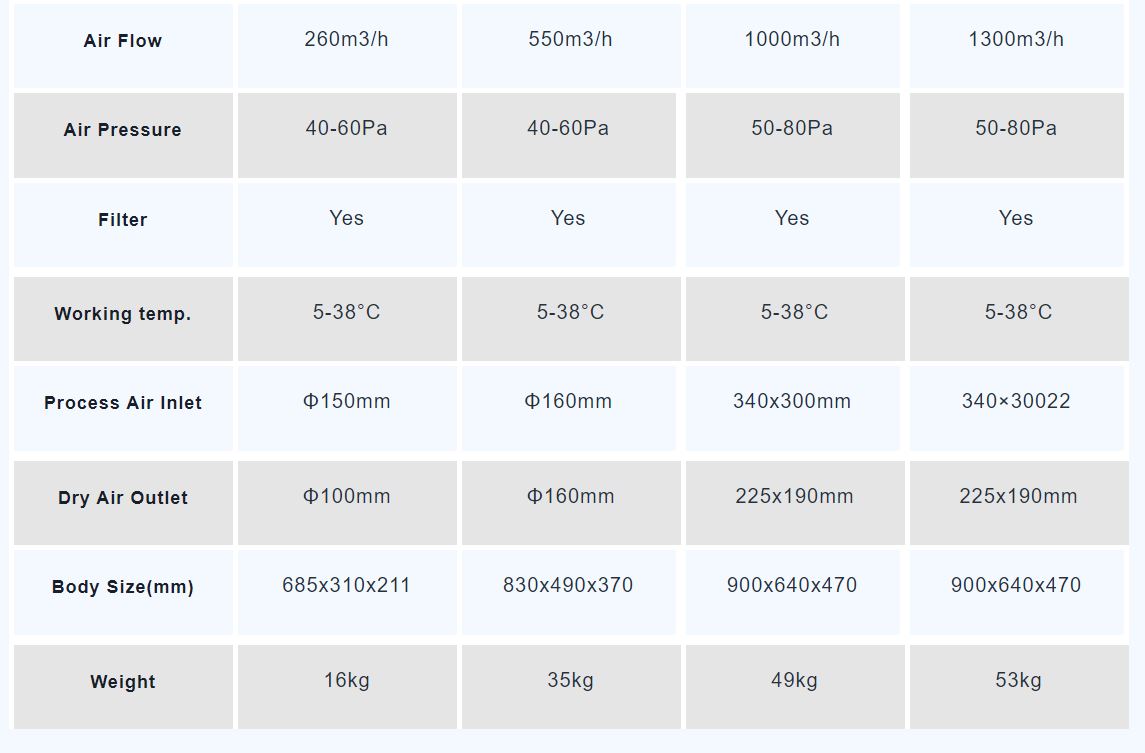

Air Flow

260m3/h

550m3/h

1000m3/h

1300m3/h

Air Pressure

40-60Pa

40-60Pa

50-80Pa

50-80Pa

Filter

Yes

Yes

Yes

Yes

Working temp.

5-38°C

5-38°C

5-38°C

5-38°C

Process Air Inlet

Φ150mm

Φ160mm

340x300mm

340×30022

Dry Air Outlet

Φ100mm

Φ160mm

225x190mm

225x190mm

Body Size(mm)

685x310x211

830x490x370

900x640x470

900x640x470

Weight

16kg

35kg

49kg

53kg

Dessicant Rotor Dehumidifiers

UV Care Dessicant Rotor Dehumidifier UC-300M

Learn More

UV Care Dessicant Rotor Dehumidifier
UC-100M

Learn More

UV Care Dessicant Rotor Dehumidifier UC-600M

Learn More

Dessicant Rotor Dehumidifier UC-600M

Learn More

UV Care Dessicant Rotor Dehumidifier UC-2500M

Learn More

UV Care Super
Air Cleaner Pro

Learn More

Dehumidifiers

UV Care Dehumidifier
58L/D

Learn More

UV Care Dehumidifier
60L

Learn More

UV Care Dehumidifier
480L/D

Learn More

UV Care Ceiling Ducted Dehumidifiers

Inquire now!

Product Features

  1. Lower Install & maintenance cost, energy efficient design.
  2. WIFI Control with Tuya system.
  3. Optional 5-stages of Air Filtration (Primary, Secondary, HEPA, Ionizer, UV Sterilizing Lamp).
  4. 24×7 long hour operation.
  5. Automatically ON/OFF follow the humidity. Data setting memory.
  6. Multiple working modes (Indoor circulation/Fresh air circulation/Continuous dehumidification)
  7. Adjustable three-speed wind speed
  8. Optional inside water pump.

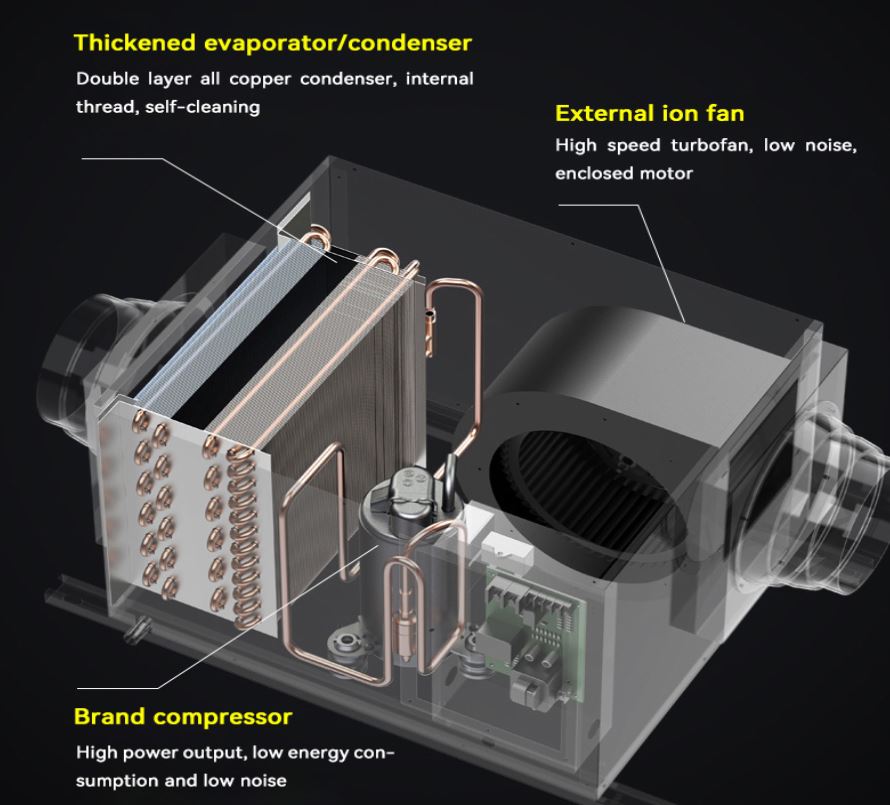

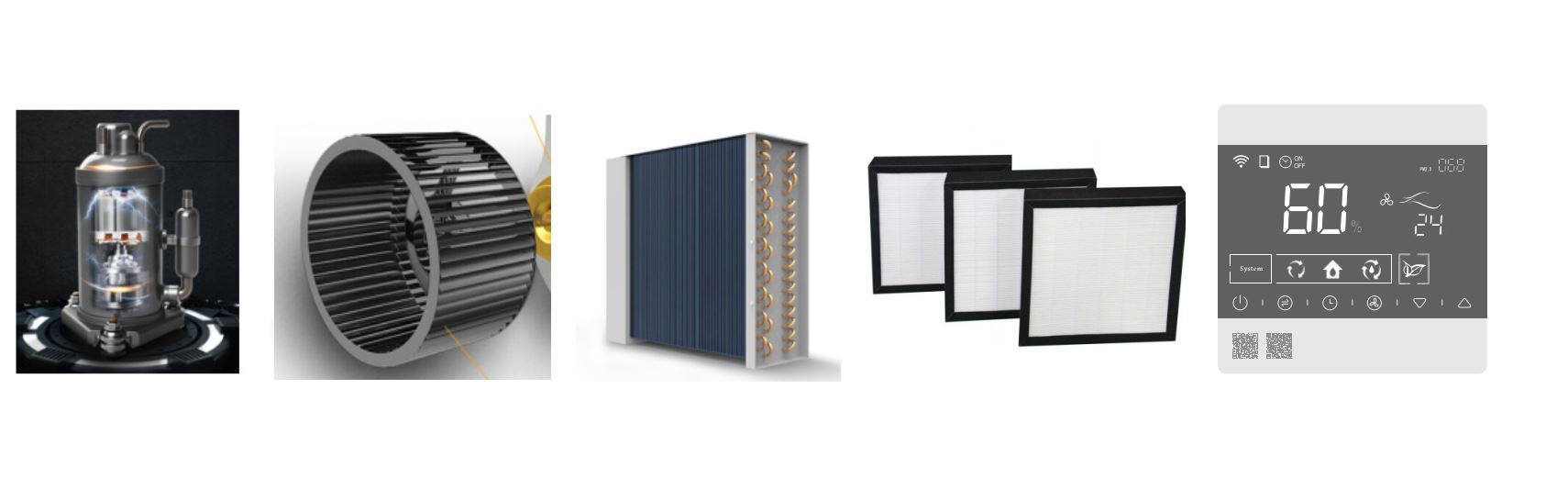

FRAME
Stronger Cold-rolled sheet metal with epoxy powder coating paint.

EVAPORATOR & CONDENSER
Made of copper pipes and aluminum fins.
Both epoxy-coated, better durability & corrosion resistant.

COMPRESSOR
Reliable and high-performance reciprocating compressor.
World top brand.

FAN
High efficiency AC/EC Centrifugal Fan, lower noise, higher static pressure operation with variable speed controller.

WATER TRAY
SS304 Water tray prevent corrosion damage.

HUMIDITY SENSOR
Highly sensitive temperature & humidity sensor, which always be displayed on the LED control panel.

Product Features

  1. Lower Install & maintenance cost, energy efficient design.
  2. WIFI Control with Tuya system.
  3. Optional 5-stages of Air Filtration (Primary, Secondary, HEPA, Ionizer, UV Sterilizing Lamp).
  4. 24×7 long hour operation.
  5. Automatically ON/OFF follow the humidity. Data setting memory.
  6. Multiple working modes (Indoor circulation/Fresh air circulation/Continuous dehumidification)
  7. Adjustable three-speed wind speed
  8. Optional inside water pump.

FRAME
Stronger Cold-rolled sheet metal with epoxy powder coating paint.

EVAPORATOR & CONDENSER
Made of copper pipes and aluminum fins.
Both epoxy-coated, better durability & corrosion resistant.

COMPRESSOR
Reliable and high-performance reciprocating compressor.
World top brand.

FAN
High efficiency AC/EC Centrifugal Fan, lower noise, higher static pressure operation with variable speed controller.

WATER TRAY
SS304 Water tray prevent corrosion damage.

HUMIDITY SENSOR
Highly sensitive temperature & humidity sensor, which always be displayed on the LED control panel.

Ceiling Dehumidifiers Are Best Used In:
